Schluter collection - kerdi prefabricated shower niche

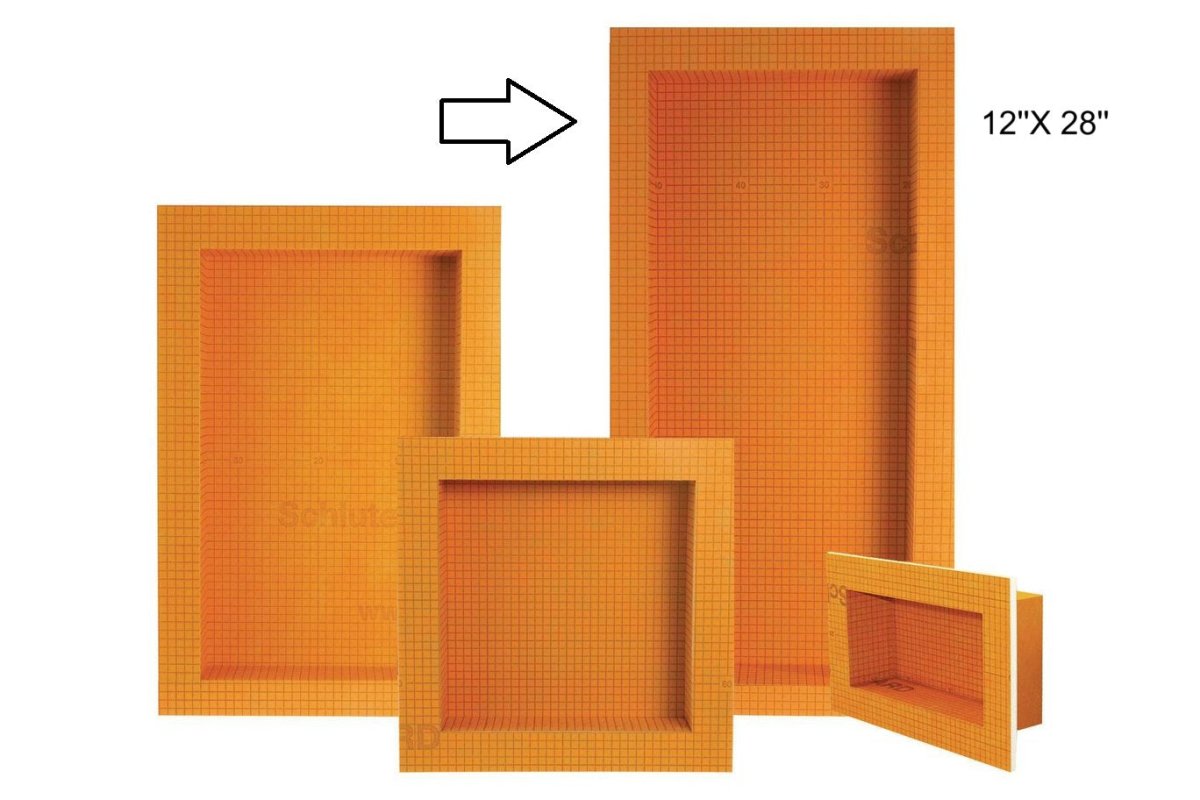

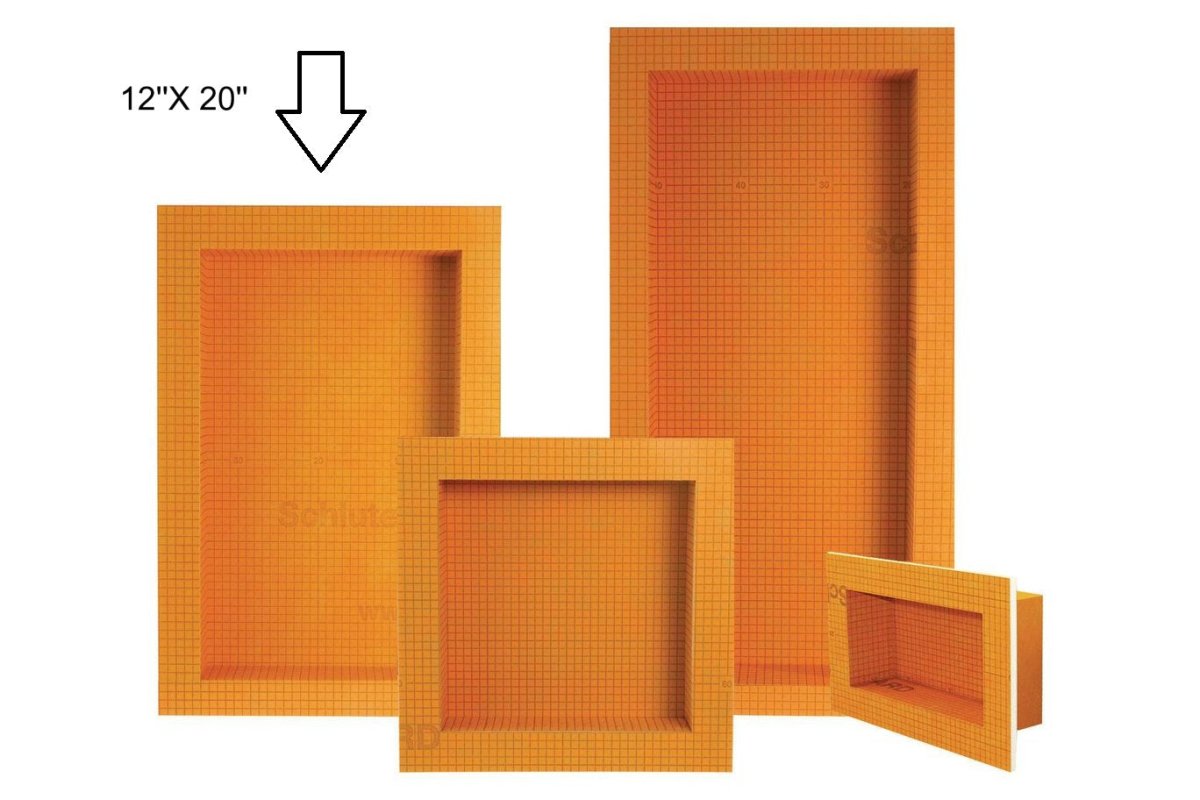

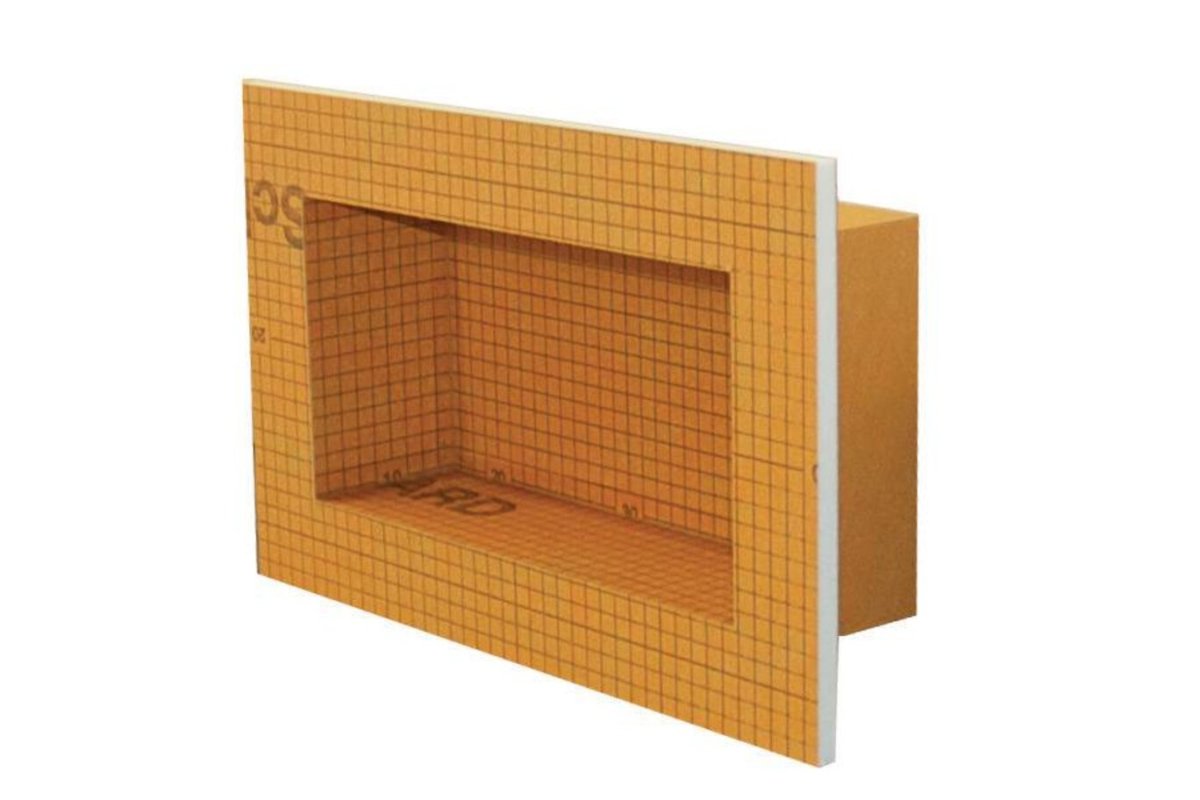

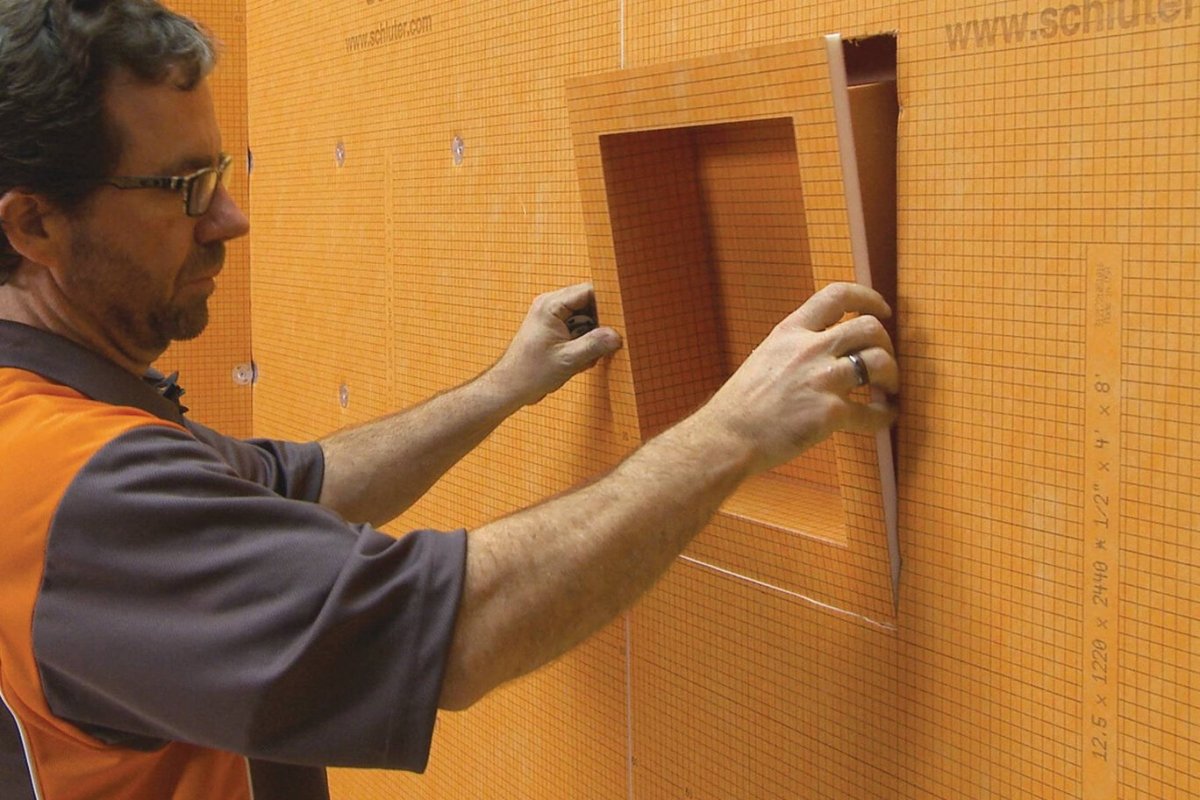

Schluter^®-KERDI-BOARD-SN is a prefabricated shower niche that is fully sealed, quick to install, and integrates with KERDI and KERDI-BOARD shower assemblies. All niche sizes include a waterproof KERDI-BAND frame to seal the seams, as well as screws and washers for fastening KERDI-BOARD-SN to stud framing.

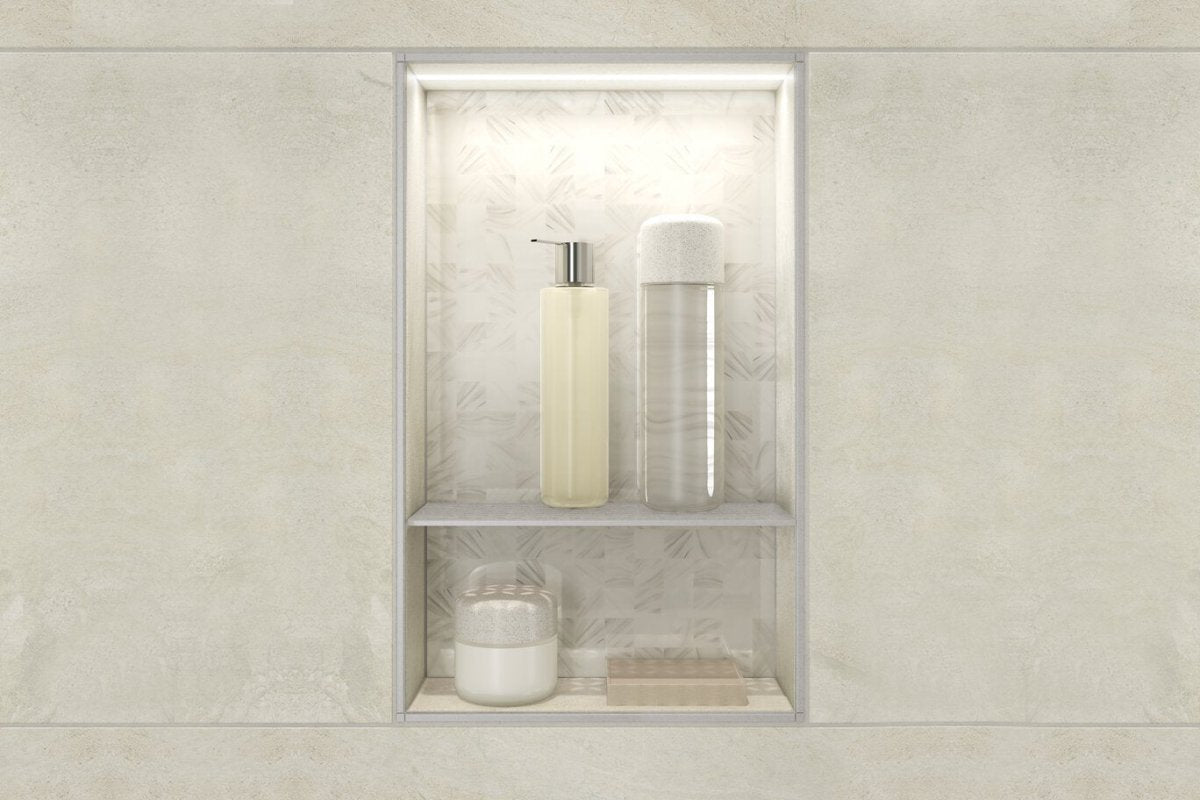

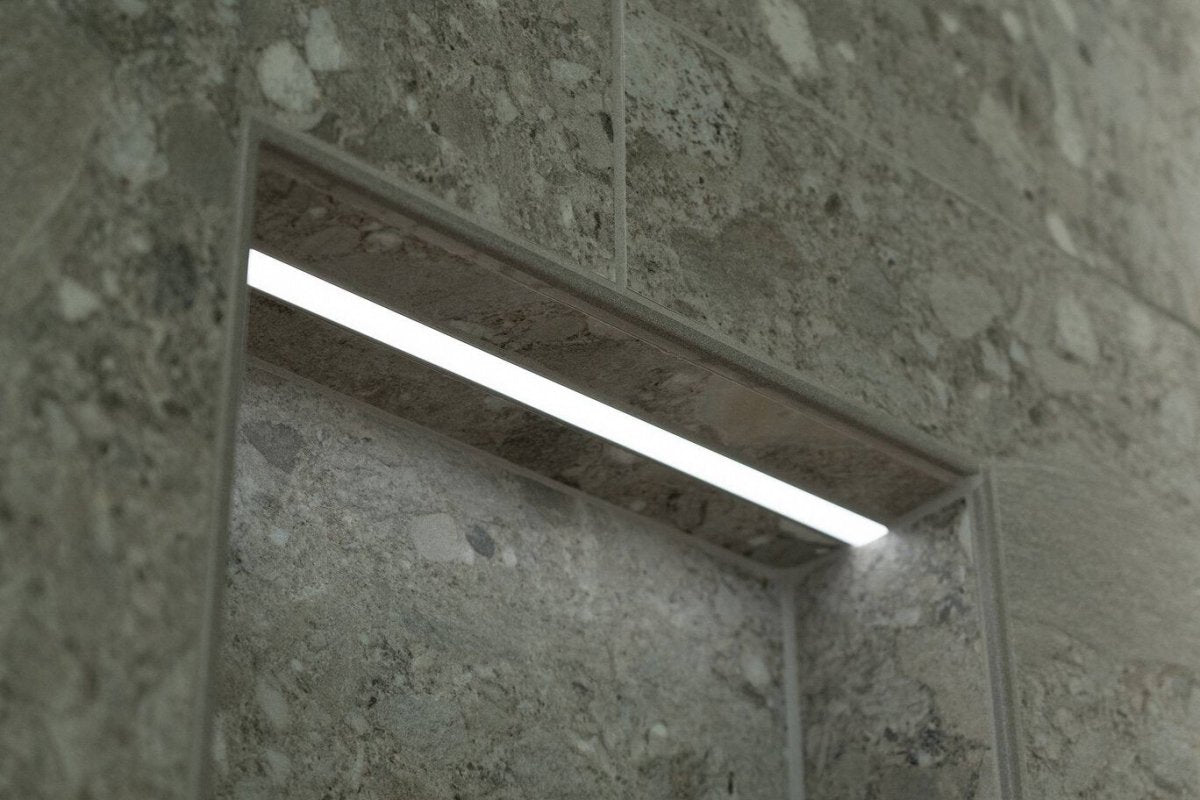

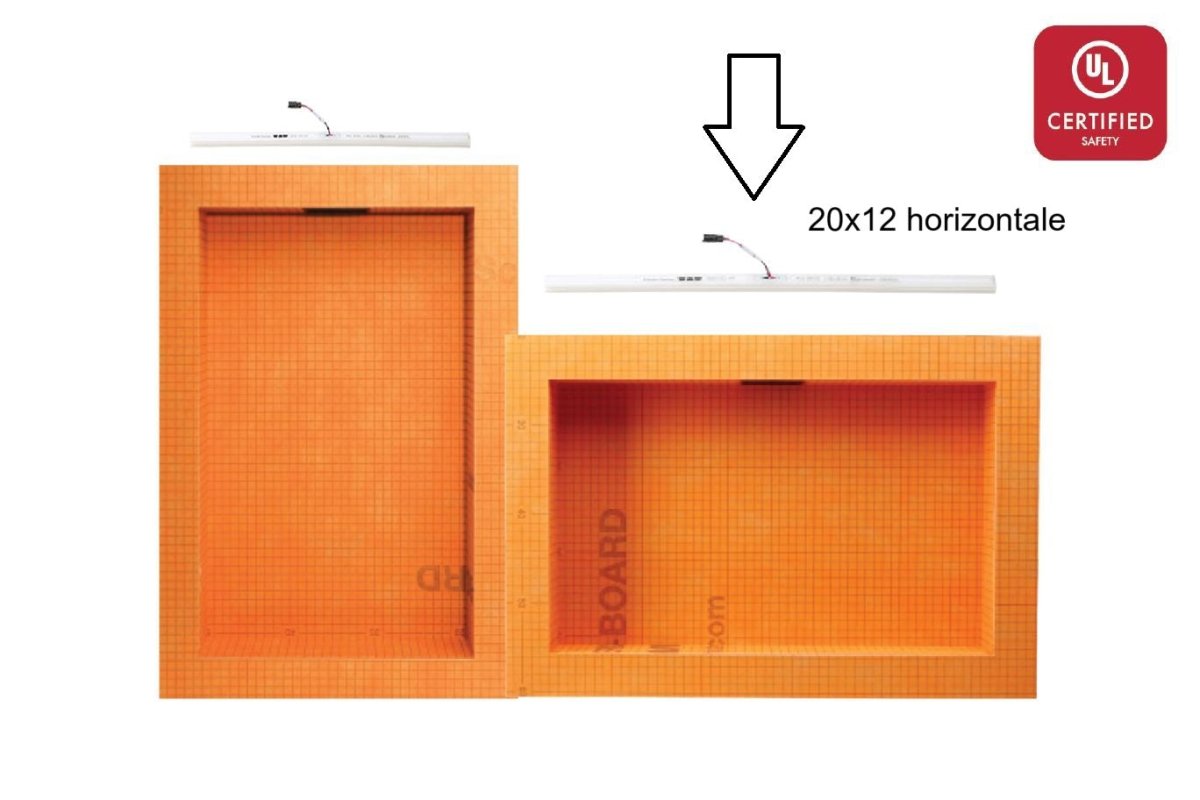

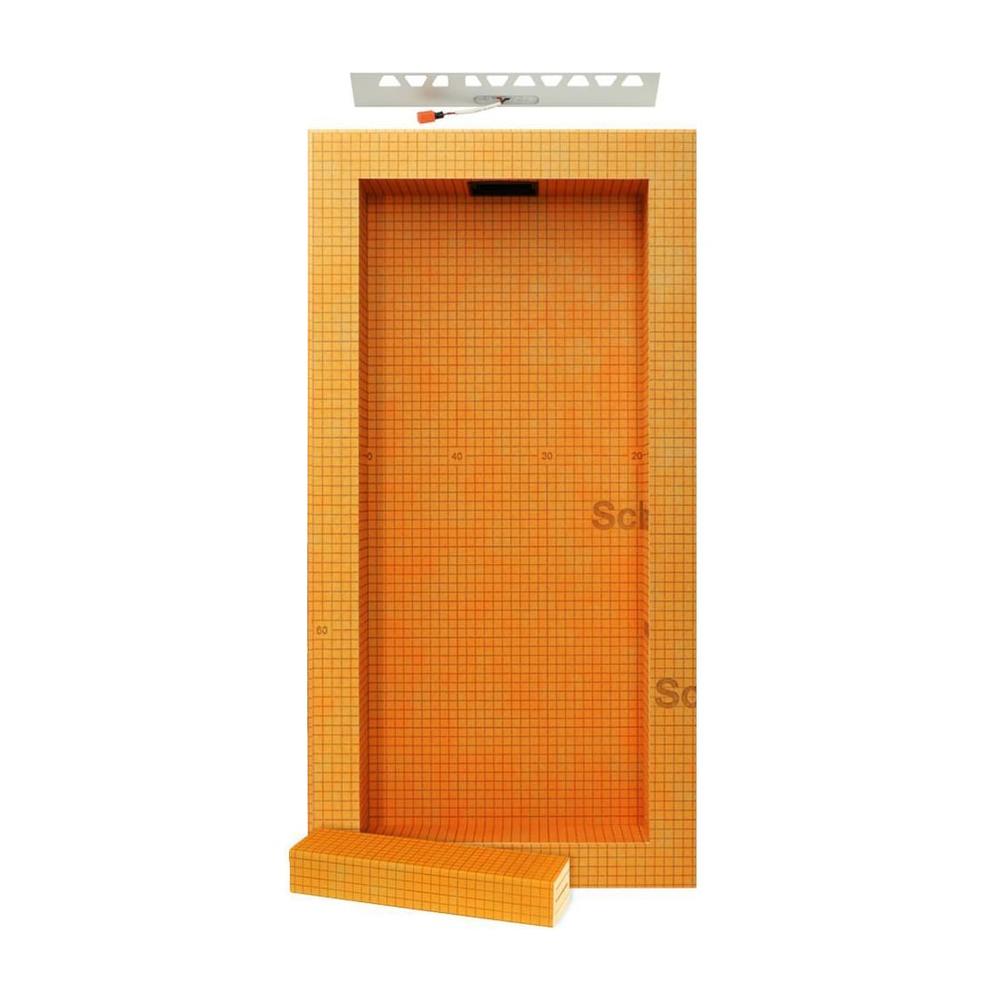

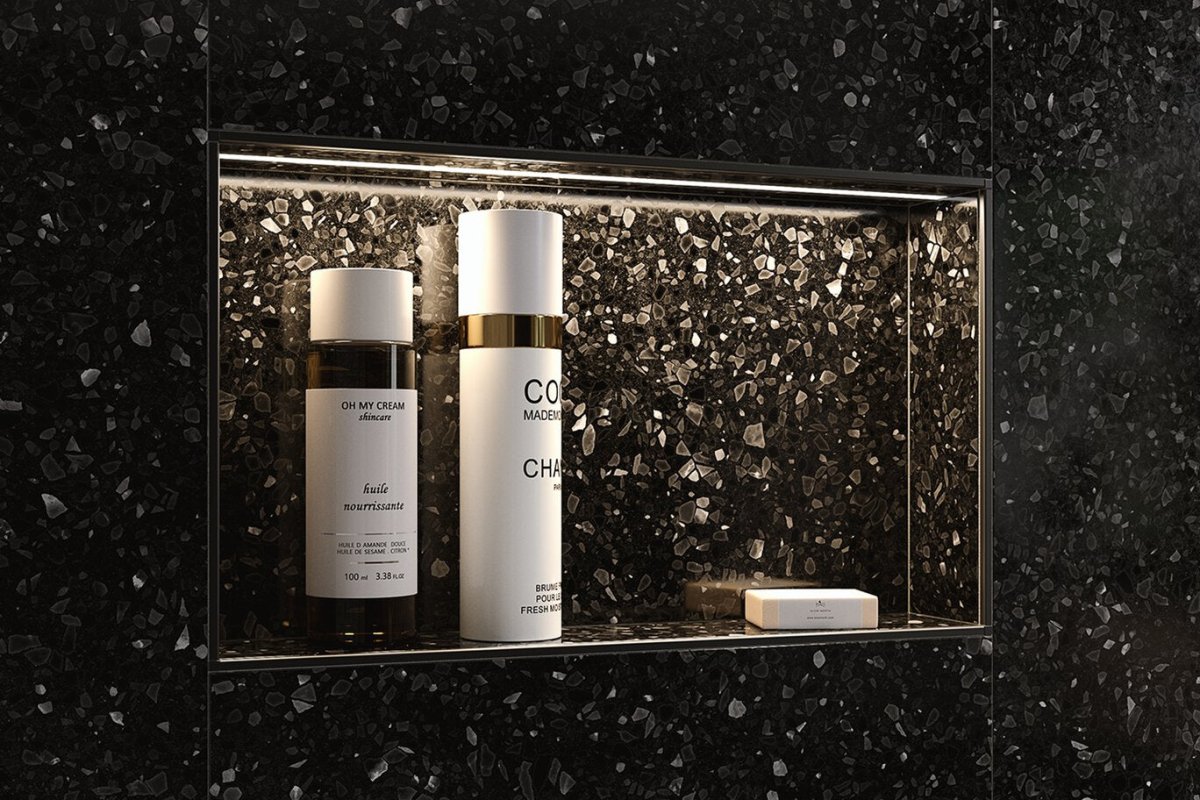

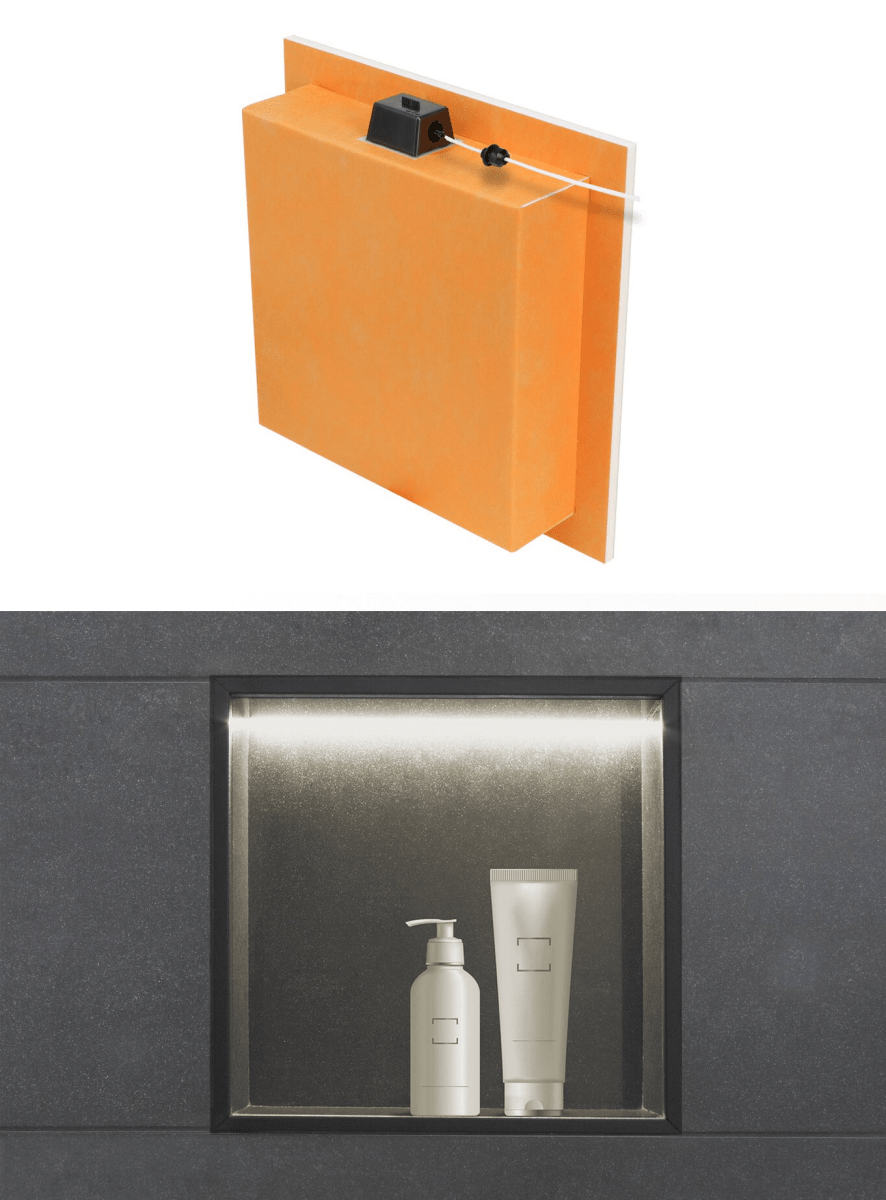

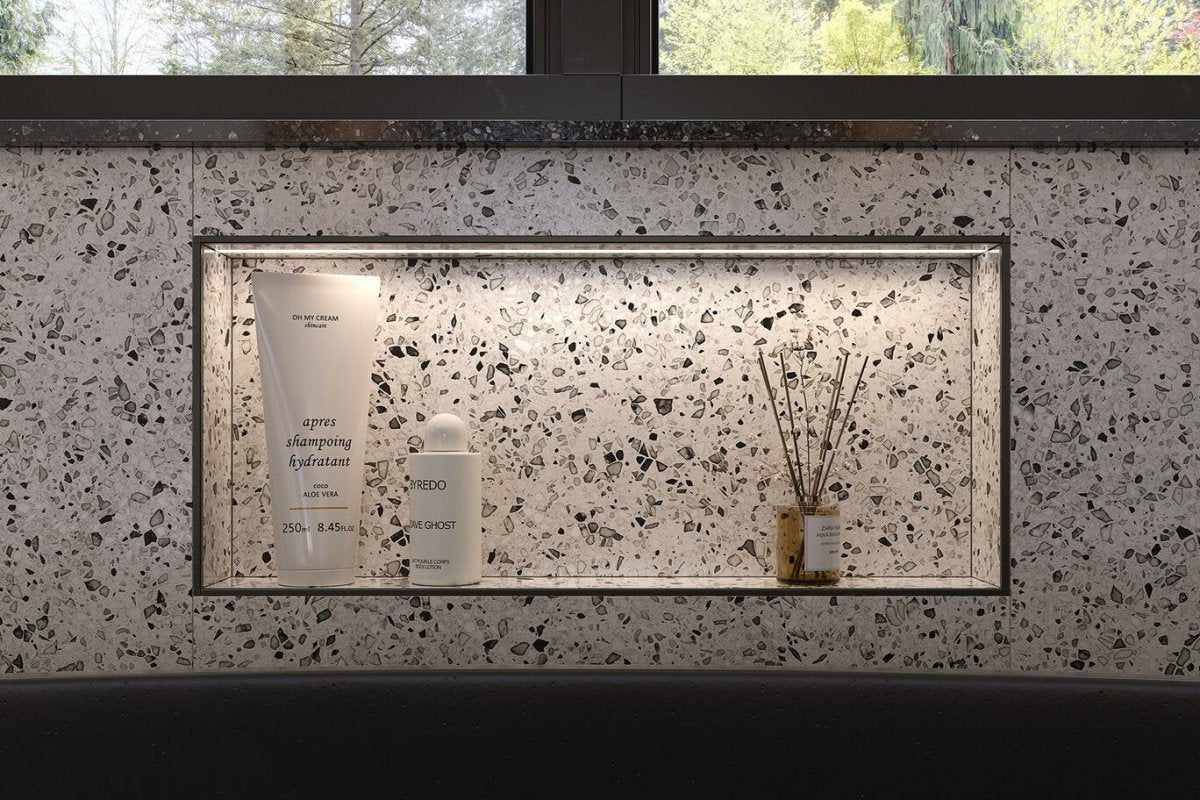

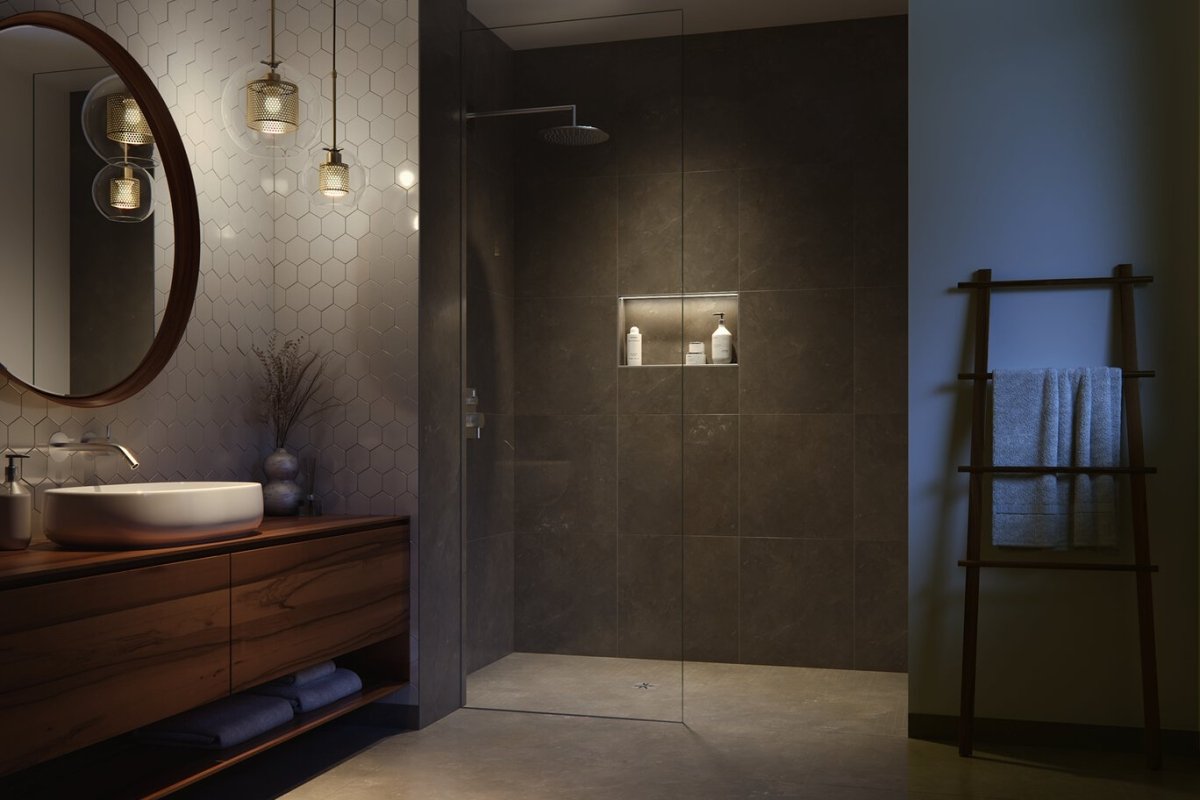

KERDI-BOARD-SNLT is a prefabricated shower niche that features integrated LIPROTEC LED lighting. The niche includes a waterproof cable connection box at the top of the niche to ensure a code-compliant installation of electrical components in a wet area. The kit includes a profile and a LIPROTEC light strip that inserts directly into the profile and can be installed in either a center or rear position at the top of the niche.

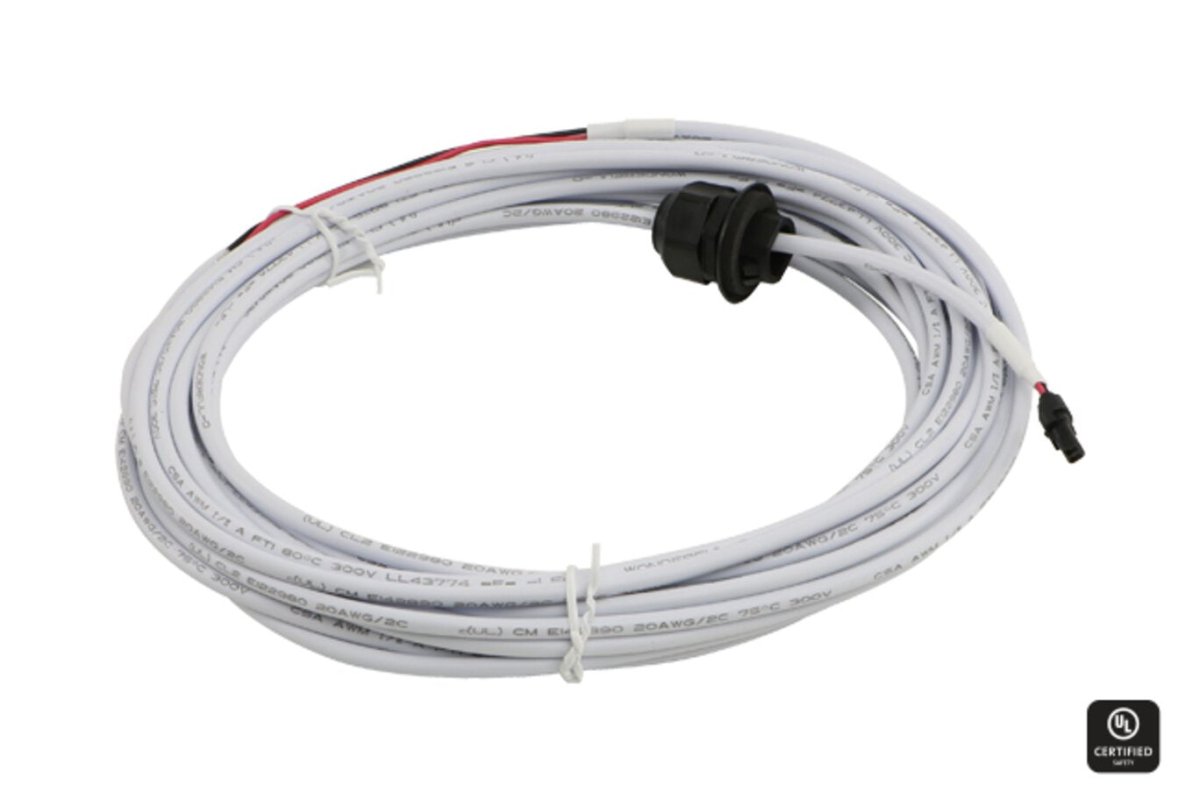

The LIPROTEC-CW cable features a pre-installed waterproof snap-in gland for a secure connection to the top of the niche, and connectors to attach the LED strip.

• Rated for in-wall installation – no conduit required
• Class 2 low voltage cable (CL2)
• CSA FT4 rated (80°C)
• 2 conductor, 20AWG
• UL listed in USA and Canada

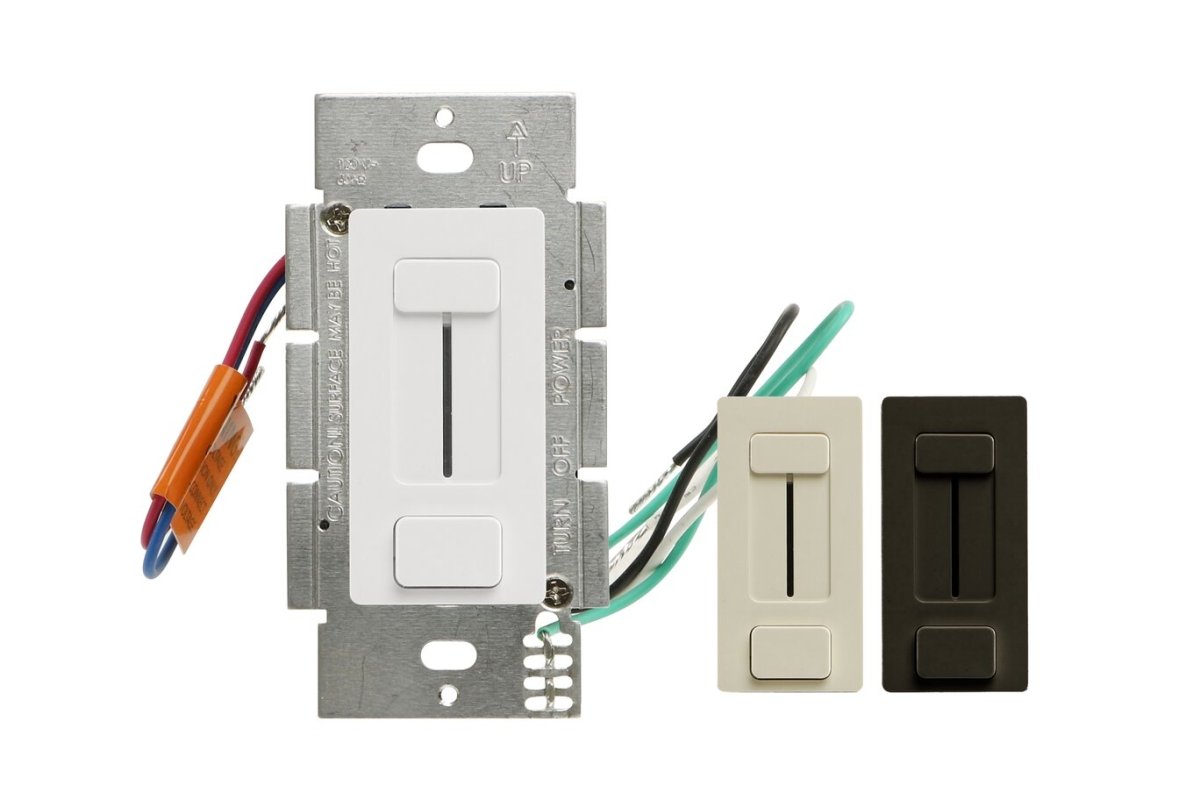

LIPROTEC-ECX is an all-in-one LED power supply and in-wall dimmer switch that eliminates compatibility issues between drivers and dimmer switches.

• Smooth, even dimming
• Dimming range: 5% to 100%
• Can control multiple KERDI-BOARD-SNLT niches (up to 60 watts)
• Fits in a standard electrical switch box
• Includes three interchangeable face plates to match most decors
• UL listed in USA and Canada

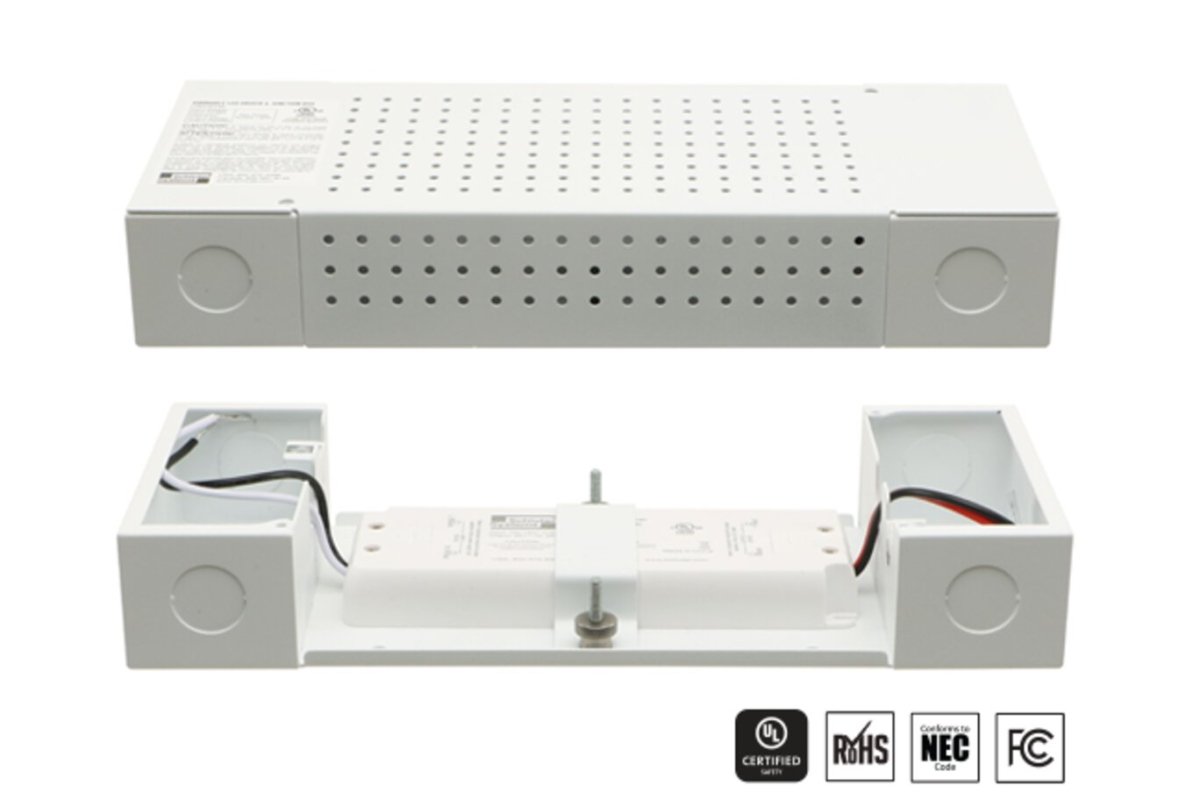

LIPROTEC-ECD is an in-line dimmable driver that is hard wired into your electrical. It is compatible with a range of popular dimmer switches including smart dimmers, allowing you to have matching light switches throughout your bathroom.

• Dimming range: 5% to 100%
• Can control multiple KERDI-BOARD-SNLT niches (up to 24 watts)
• Includes metal enclosure

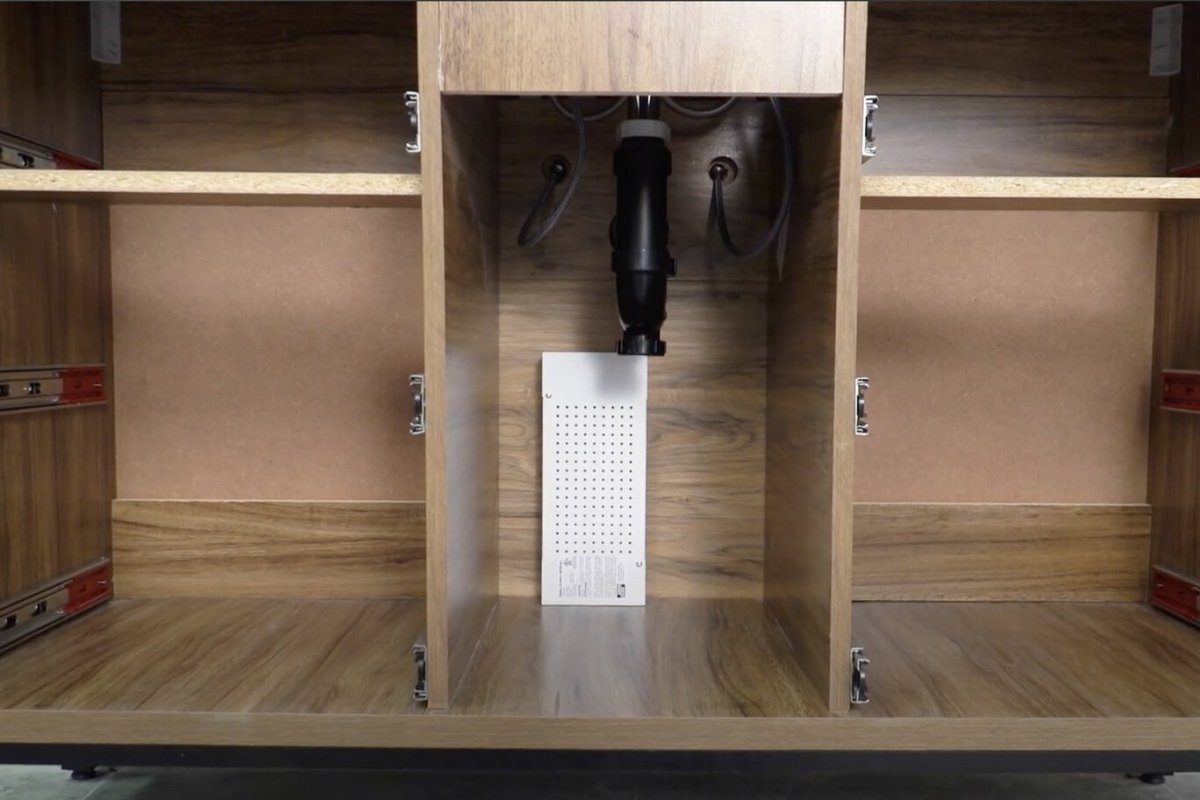

• Install in an accessible location, such as a closet or vanity

 Documents :
     Brochure
